2019 Latest Design PTFE Tubes with Low Price and High Quality
Fast and good quotations, informed advisers to help you choose the correct product that suits all your needs, a short production time, responsible quality control and different services for paying and shipping affairs for 2019 Latest Design PTFE Tubes with Low Price and High Quality, We sincerely hope to provide both you and your small business with a excellent start. If there is anything we are able to do for yourself, we shall be more than pleased to do so. Welcome to our manufacturing facility for go to.
Fast and good quotations, informed advisers to help you choose the correct product that suits all your needs, a short production time, responsible quality control and different services for paying and shipping affairs for China Teflon Pipe and Convoluted Hose, Hard work to keep making progress, innovation in the industry, make every effort to first-class enterprise. We try our best to build the scientific management model, to learn abundant expert knowledge, to develop advanced production equipment and production process , to create the first-call quality merchandise, reasonable price , high quality of service , quick delivery , to present you create new value .

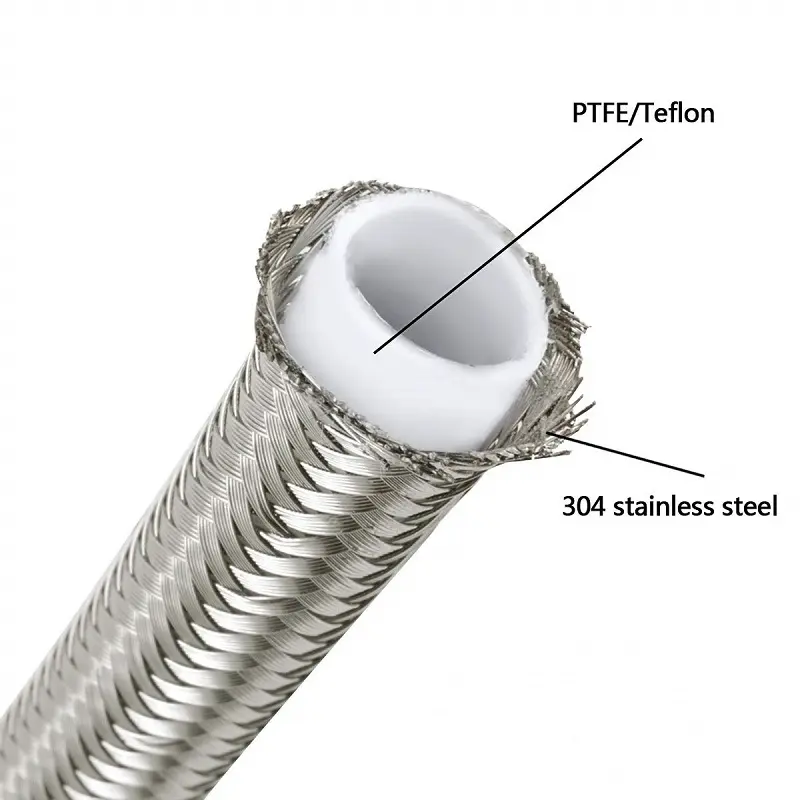

PTFE/teflon lined wire braided metal hose is braided Convoluted hose comprised a convoluted PTFE tube liner and single or double stainless steel outer braid. It’s lightweight, has excellent flexibility, kink resistance and corrosion resistance for superior performance in chemical transfer, high temperature hydraulics, can be design and used in automotive, fluid handling, chemical transfer, paint, pharmaceutical, food & beverage processing, cosmetics and general-purpose applications
Advantages
Meanwhile, It can be used for a long time at -60～250℃, has reliable and excellent corrosion resistance, and is used to transport strong corrosive media under high temperature. Its service life of PTFE corrugated metal hose is much longer than the existing steam hoses. It does not need to be replaced after long-term use, which greatly reduces the use cost, improves the use efficiency,economical and practical.
PTFE lined metal hose core is made from virgin 100% PTFE resin without any pigment or additive, PTFE is a good anti-friction and self-lubricating material with low friction coefficient, and its static friction coefficient is less than its dynamic friction coefficient, so it has the advantages of low starting resistance and smooth running. Meanwhile, it is an excellent electrical insulation material.
Wire braiding is produced from AISI 304 or 316 stainless steel wire, also can be customized.
General Specifications of PTFE Teflon metal hose tube
| Spec. | Inner Tube I.D. | Inner Tube O.D. | Braided O.D. | W.P. | Min. Bendius |
| (mm) | (mm) | (mm) | (kg) | /mm ±3mm | |
| 1/8. | 3.2 | 5.5 | 6.5 | 314 | 45 |
| 3/16. | 4.8 | 6.7 | 8 | 256 | 76 |
| 1/4. | 6.4 | 7.8 | 8.8 | 230 | 81 |
| 5/16. | 7.9 | 10 | 11.5 | 194 | 131 |
| 3/8. | 9.8 | 11.6 | 12.8 | 162 | 182 |
| 1/2. | 12.7 | 15 | 16.5 | 90 | 211 |
| 5/8. | 15.9 | 18 | 20 | 80 | 252 |
| 3/4. | 19 | 21.4 | 23 | 70 | 312 |
| 7/8. | 22.25 | 24.65 | 26.4 | 60 | 421 |
| 1 | 25 | 28 | 30 | 50 | 489 |

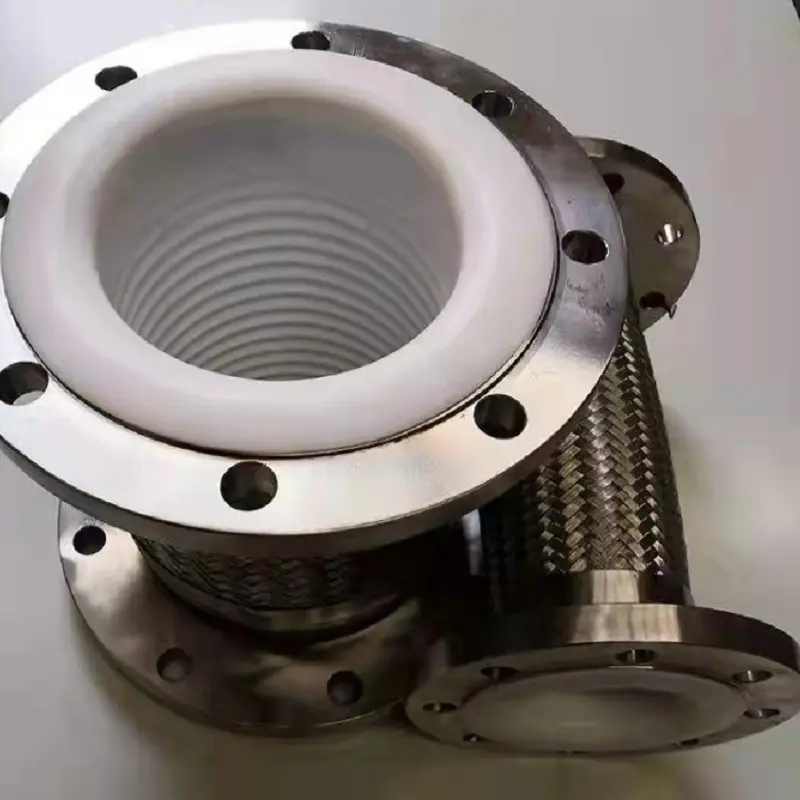

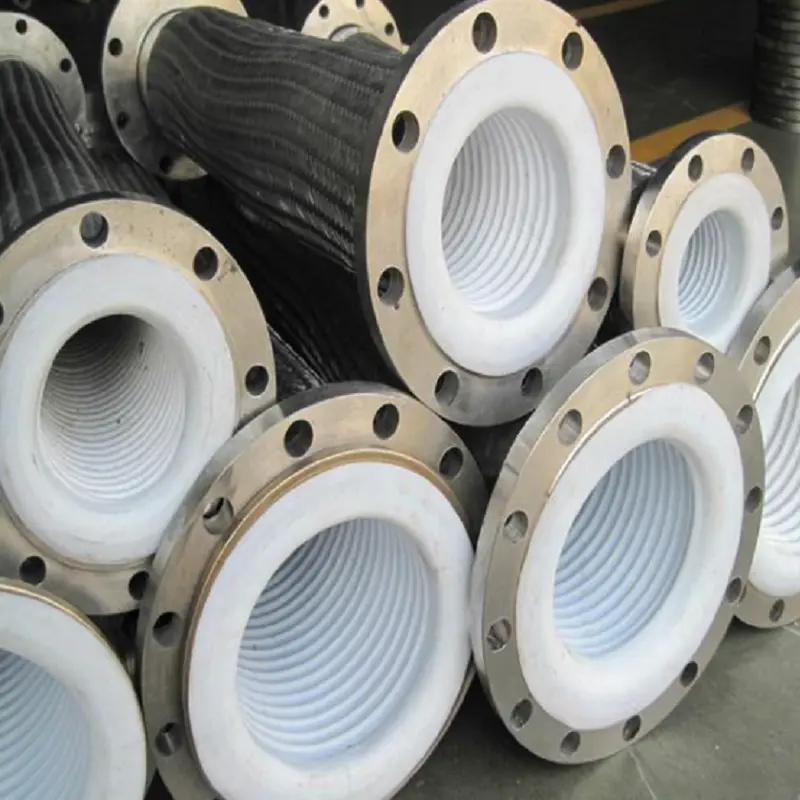

Product Display
Fast and good quotations, informed advisers to help you choose the correct product that suits all your needs, a short production time, responsible quality control and different services for paying and shipping affairs for 2019 Latest Design PTFE Tubes with Low Price and High Quality, We sincerely hope to provide both you and your small business with a excellent start. If there is anything we are able to do for yourself, we shall be more than pleased to do so. Welcome to our manufacturing facility for go to.
2019 Latest Design China Teflon Pipe and Convoluted Hose, Hard work to keep making progress, innovation in the industry, make every effort to first-class enterprise. We try our best to build the scientific management model, to learn abundant expert knowledge, to develop advanced production equipment and production process , to create the first-call quality merchandise, reasonable price , high quality of service , quick delivery , to present you create new value .
