2021 wholesale price Beer Hose - Flexible Multi Function Air Rubber Hoses – HESPER Detail:

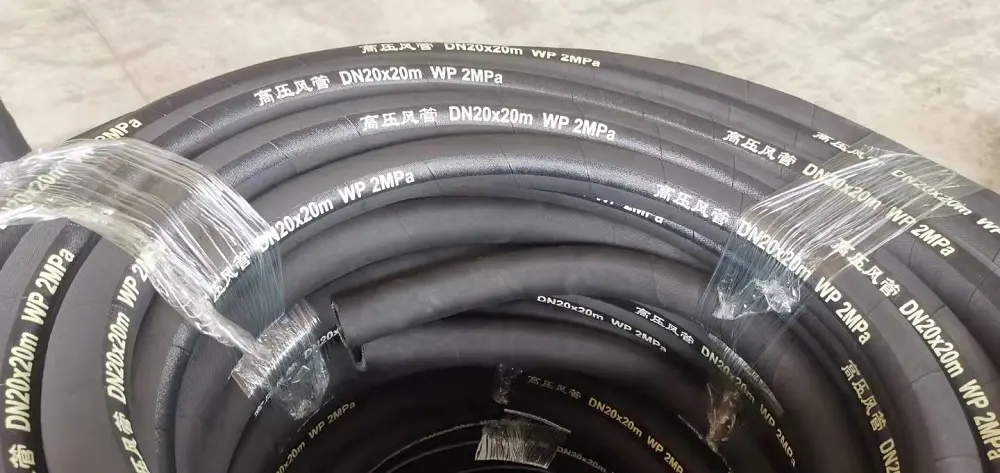

Rubber air hose

Rubber air hose/ tube,one of its uses is used as the connector between air compressor and other devices. It is widely used in underwater diving, diving dress and other types of surface supplied diving equipment. In the other hand, air hoses can also be used for air brakes between tractors and semi-trailers,used for conveying of air, inert gas and water in mining, construction, engineering, shipbuilding, steel production etc.

Rubber air hose is composed of three parts: tube, reinforcement and cover. The tube is made from high quality black and smooth synthetic rubber, mainly NBR, which is resistant to abrasion, corrosion and oils. The reinforcement is made from multiple layers of high strength synthetic fiber, making the hose have solid structure. The cover is made from high quality black and smooth synthetic rubber, is resistant to fire, abrasion, corrosion, oils, weather, ozone and aging. The hose has a long service life as a result..

Features

Tube: Synthetic rubber

Reinforcement: High tensile tire cord braid or spiral

Cover: weather resistant synthetic rubber

Temperature: -30°C to 150°C

Color: Black or customized

Characteristics: Oil resistant tube Anti-aging synthetic rubber Weather and ozone resistant Excellent abrasion resistance

Soft, lightweight and good bending performance

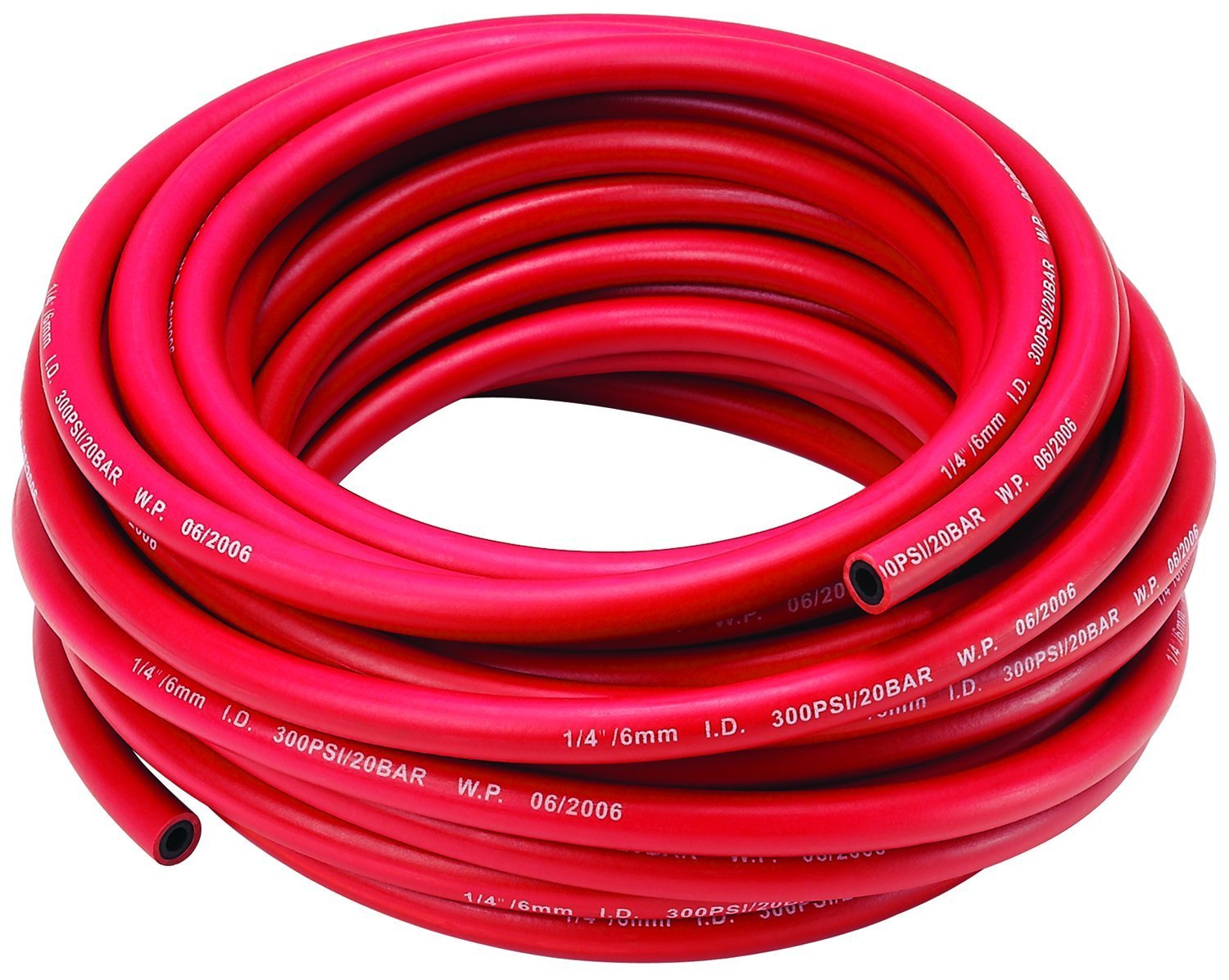

Air hose3

General Specifications

Inner diameter		Outer diameter	Working pressure	Burst pressure	Bend radius	Weight	Length
inch	mm	mm	MPa	MPa	mm	kg/m	m/roll
1/4″	6	15.5	2	6	102	0.308	100
5/16″	8	17.5	2	6	114	0.324	100
3/8″	10	19.5	2	6	127	0.4	100
1/2″	13	23	2	6	178	0.548	100
5/8″	16	26	2	6	203	0.6	100
3/4″	19	30.5	2	6	241	0.76	100
1″	25	38	2	6	305	1.08	100
1-1/4″	32	46	2	6	419	1.28	50
1-1/2″	38	56	2	6	500	1.72	50
2″	51	70	2	6	630	2.9	50

Product Display

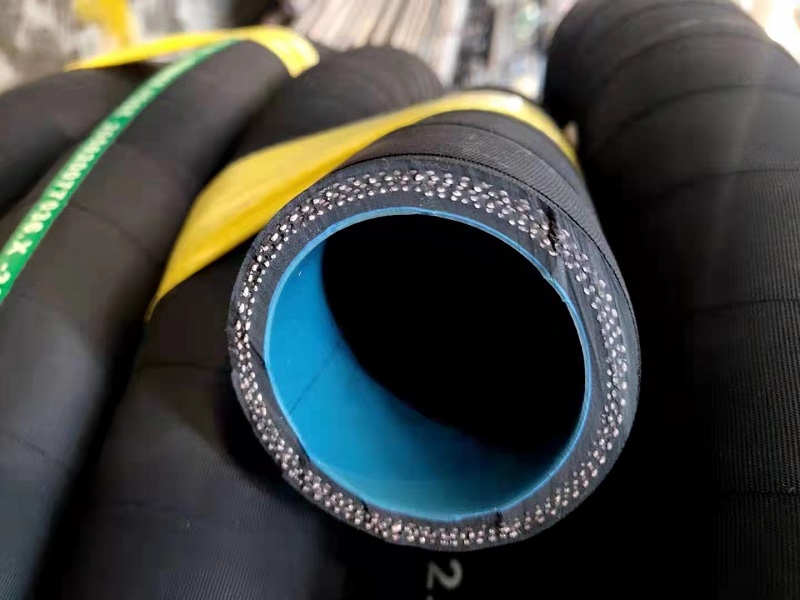

Rubber air hose-2

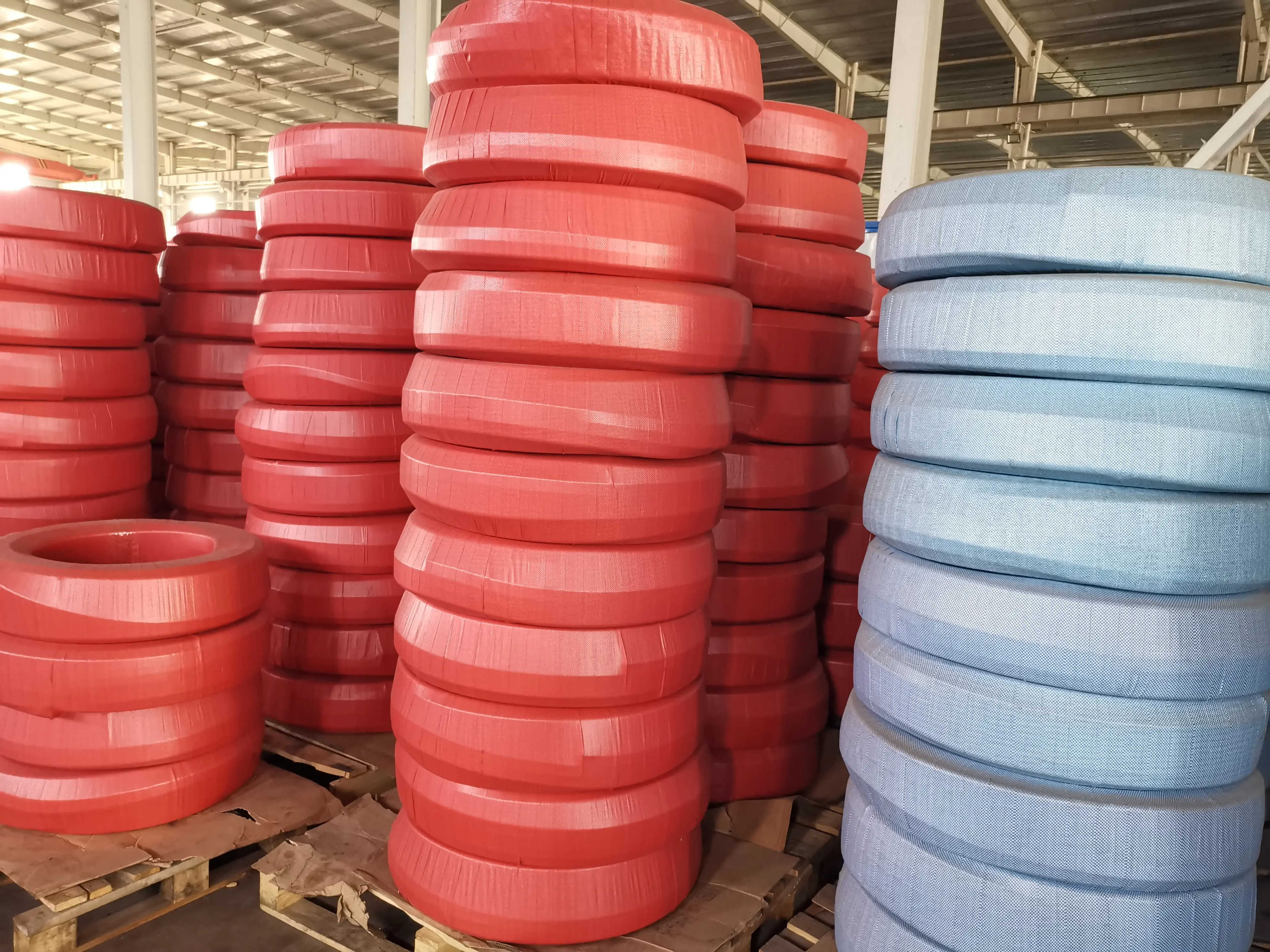

Air hose4

Product detail pictures:
