OEM Customized Liquid Nitrogen Hose - Flexible Multi Function Air Rubber Hoses – HESPER
OEM Customized Liquid Nitrogen Hose - Flexible Multi Function Air Rubber Hoses – HESPER Detail:
Rubber air hose/ tube,one of its uses is used as the connector between air compressor and other devices. It is widely used in underwater diving, diving dress and other types of surface supplied diving equipment. In the other hand, air hoses can also be used for air brakes between tractors and semi-trailers,used for conveying of air, inert gas and water in mining, construction, engineering, shipbuilding, steel production etc.
Rubber air hose is composed of three parts: tube, reinforcement and cover. The tube is made from high quality black and smooth synthetic rubber, mainly NBR, which is resistant to abrasion, corrosion and oils. The reinforcement is made from multiple layers of high strength synthetic fiber, making the hose have solid structure. The cover is made from high quality black and smooth synthetic rubber, is resistant to fire, abrasion, corrosion, oils, weather, ozone and aging. The hose has a long service life as a result..
Features
Tube: Synthetic rubber
Reinforcement: High tensile tire cord braid or spiral
Cover: weather resistant synthetic rubber
Temperature: -30°C to 150°C
Color: Black or customized
Characteristics: Oil resistant tube Anti-aging synthetic rubber Weather and ozone resistant Excellent abrasion resistance
Soft, lightweight and good bending performance
General Specifications
|
Inner diameter |
Outer diameter |
Working pressure |
Burst pressure |
Bend radius |
Weight |
Length |
|
|
inch |
mm |
mm |
MPa |
MPa |
mm |
kg/m |
m/roll |
|
1/4″ |
6 |
15.5 |
2 |
6 |
102 |
0.308 |
100 |
|
5/16″ |
8 |
17.5 |
2 |
6 |
114 |
0.324 |
100 |
|
3/8″ |
10 |
19.5 |
2 |
6 |
127 |
0.4 |
100 |
|
1/2″ |
13 |
23 |
2 |
6 |
178 |
0.548 |
100 |
|
5/8″ |
16 |
26 |
2 |
6 |
203 |
0.6 |
100 |
|
3/4″ |
19 |
30.5 |
2 |
6 |
241 |
0.76 |
100 |
|
1″ |
25 |
38 |
2 |
6 |
305 |
1.08 |
100 |
|
1-1/4″ |
32 |
46 |
2 |
6 |
419 |
1.28 |
50 |
|
1-1/2″ |
38 |
56 |
2 |
6 |
500 |
1.72 |
50 |
|
2″ |
51 |
70 |
2 |
6 |
630 |
2.9 |
50 |

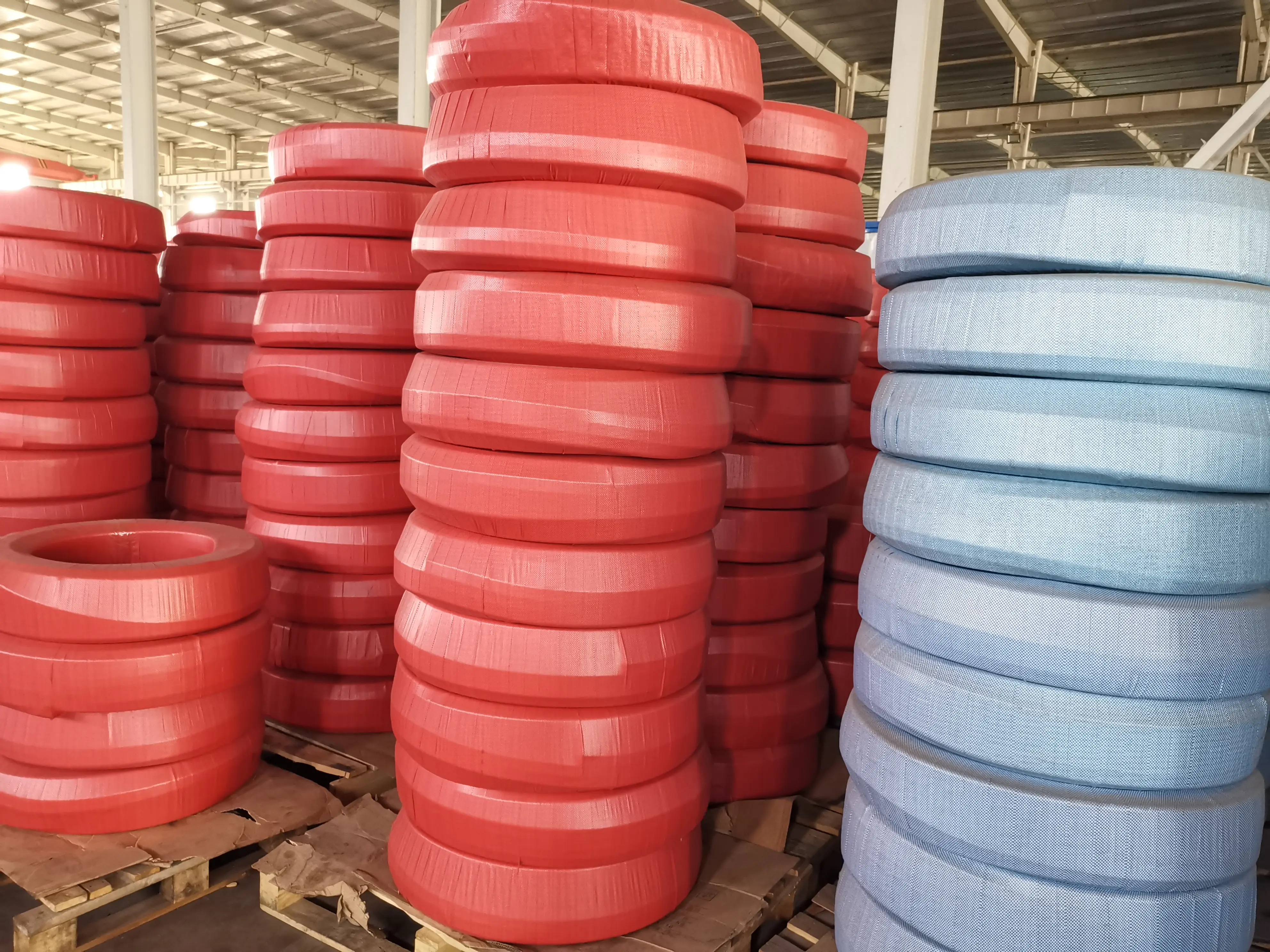

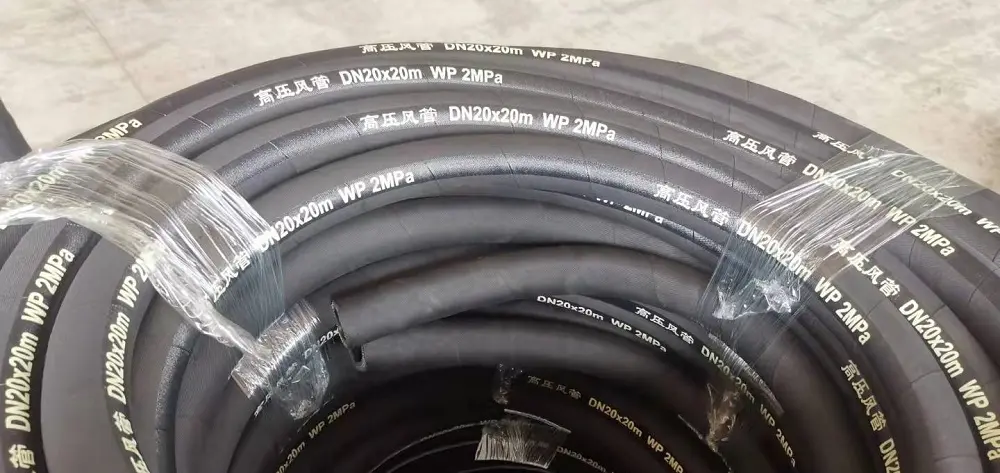

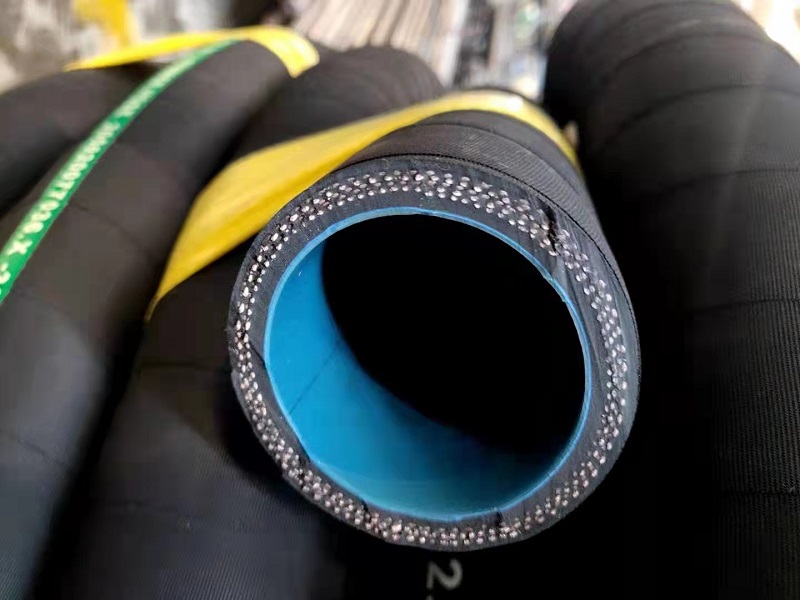

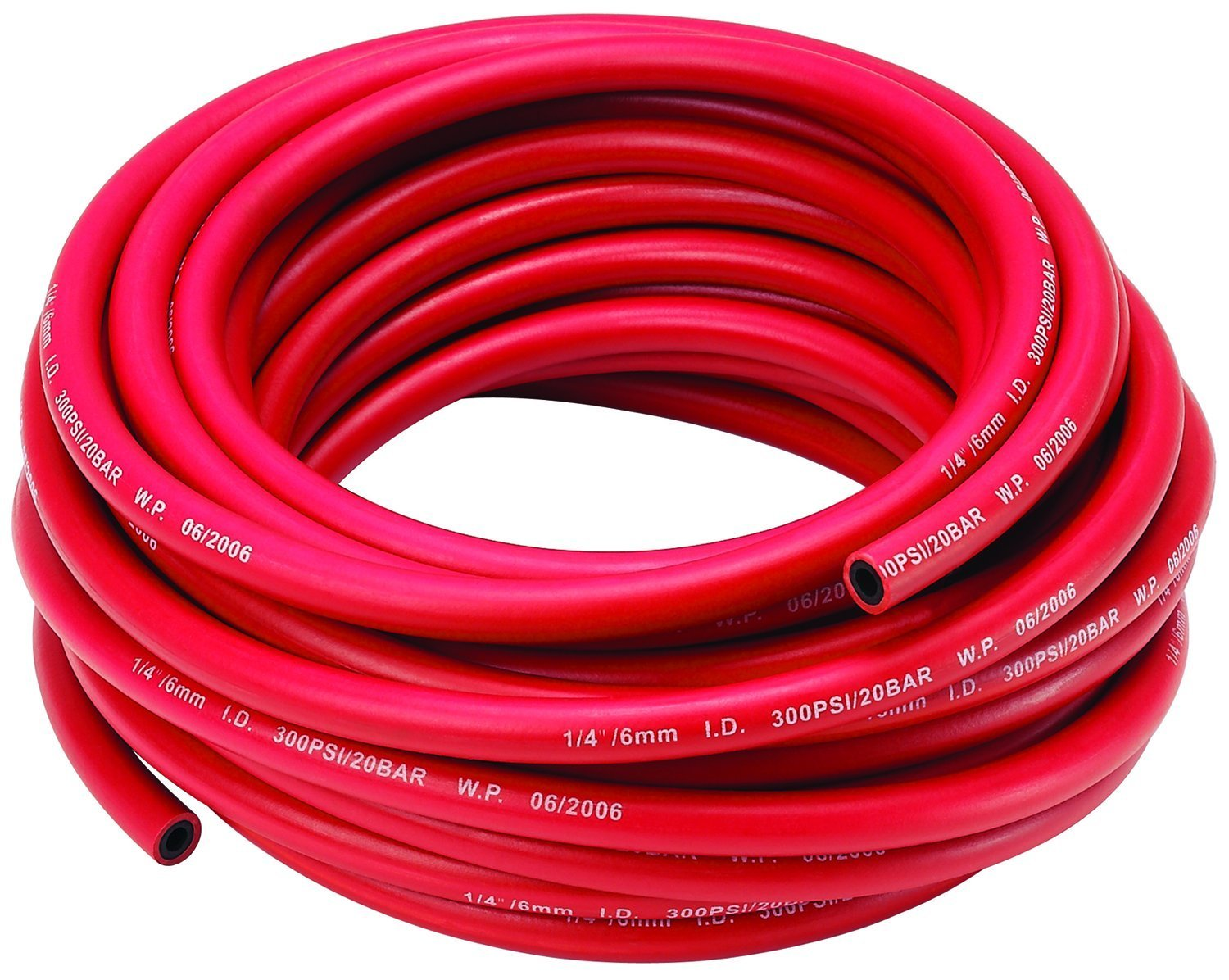

Product Display
