How to Choose the Right Ceramic Plated Rubber Hose?

Choosing the right Ceramic Plated Rubber Hose requires more than comparing diameter, pressure, and price. The real decision begins with the material moving through the hose. Fine silica slurry behaves differently from sharp limestone, steel grit, or coal ash. Particle size matters. Flow speed matters more than many buyers expect.

Michael R. Haines, an abrasion-engineering specialist, offers a practical warning: “A hose survives only when its lining matches the wear mechanism.” That principle should guide every specification. A ceramic lining can resist severe abrasion, but it is not automatically suitable for every installation. Excessive bending may damage ceramic segments. Poor flange alignment can create stress at the ends. High temperature may also weaken the rubber compound.

Look closely at the operating details. Record the working pressure, surge pressure, temperature range, bend radius, and slurry concentration. Check whether the hose will drag across steel, hang from supports, or remain fixed beside a pump. Inspect the ceramic pattern, bonding quality, cover thickness, and end reinforcement. Small omissions become expensive failures.

A perfect selection is rare. Assumptions can be wrong.

This guide explains how to compare Ceramic Plated Rubber Hose designs using practical service conditions, not attractive brochures. It also considers maintenance access, replacement time, and total operating cost. A cheaper hose may look efficient until one unplanned shutdown stops production. Conversely, an oversized hose may waste money without improving service life. The best choice is balanced, documented, and tested against the actual wear environment.

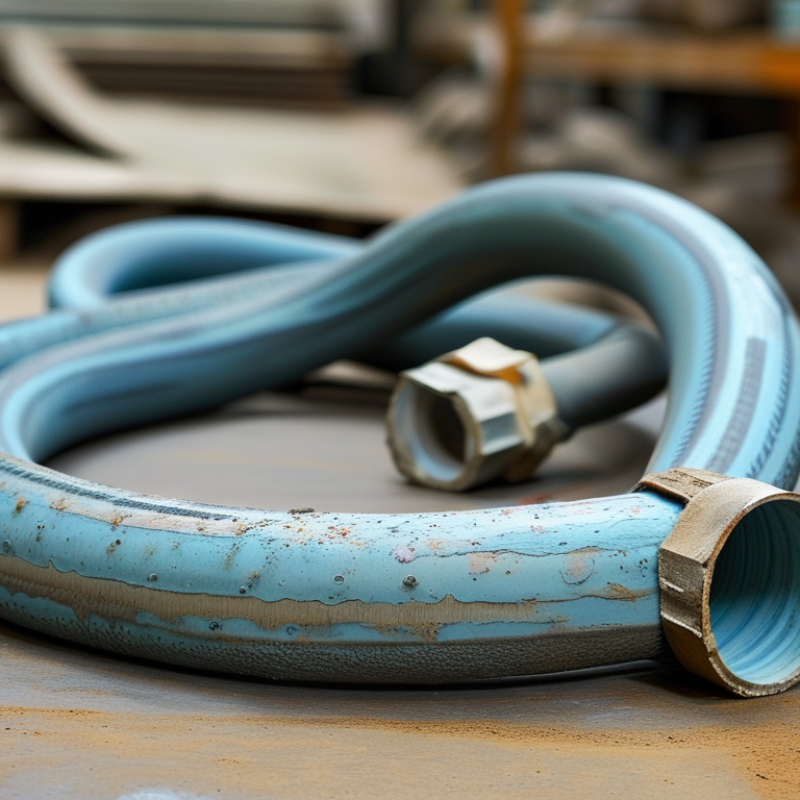

How to Choose the Right Ceramic Plated Rubber Hose?
Table of Contents [Hide]
1 Understanding Ceramic Plated Rubber Hose Structure and Function
2 Identifying the Required Working Conditions and Performance Standards
3 Comparing Ceramic Materials, Rubber Compounds, and Hose Reinforcement
4 Checking Wear Resistance, Flexibility, Temperature, and Pressure Ratings
5 Selecting the Right Supplier, Specifications, Installation, and Maintenance Plan

Understanding Ceramic Plated Rubber Hose Structure and Function

How to Choose the Right Ceramic Plated Rubber Hose?

Understanding the structure is more useful than comparing surface appearance. A ceramic plated rubber hose normally combines an abrasion-resistant rubber tube, embedded reinforcement layers, and small ceramic tiles or plates. The rubber absorbs vibration. The ceramic surface resists sliding particles. The reinforcement controls pressure and bending.

Tile geometry matters. Dense, interlocking plates protect against sharp mineral particles and repeated impact. However, larger plates can create stress at bends.

A 2024 report from Mordor Intelligence estimates the industrial hose market will continue growing through 2029, driven partly by mining and material handling. That growth does not mean every hose suits every line. It means selection errors may become more expensive.

Check particle size, slurry concentration, operating temperature, pressure, and minimum bend radius. ASTM G65 abrasion testing can help compare wear resistance, but laboratory results do not perfectly predict field performance. They often miss sudden impact and poor installation.

In practice, measure the flange alignment and inspect the first bend near the discharge point. That area usually shows damage early.

According to the U.S. Geological Survey’s Mineral Commodity Summaries 2024, global mineral production remains substantial across abrasive materials, reinforcing the need for durable transfer systems.

Still, ceramic is not automatically better. Excessive impact, thermal shock, or incorrect tile bonding can shorten service life. A trial section may reveal more than a catalogue claim.

Identifying the Required Working Conditions and Performance Standards

Selection starts with the material, not the hose diameter.

Record the slurry’s density, particle size, temperature, pH, and flow velocity. Measure pressure during startup, shutdown, and blockage events. Static pressure alone can mislead.

Global iron ore production reached about 2.5 billion metric tons in 2024

Global iron ore production reached about 2.5 billion metric tons in 2024, according to the U.S. Geological Survey’s Mineral Commodity Summaries 2025. Such volumes create severe abrasion risks in mining and mineral processing. Ceramic lining suits hard particles, but only when the rubber backing tolerates movement and impact.

Check the hose’s rated working pressure, burst pressure, temperature range, and minimum bend radius. Do not rely on generic catalog values.

Use ISO 4649 abrasion testing data when comparing compounds.

Use ISO 4649 abrasion testing data when comparing compounds. The method measures volume loss; lower loss generally indicates better wear resistance. Ask for test conditions, because laboratory results may not match wet, angular, high-speed solids. Verify adhesion and flexibility through documented quality tests, such as ISO 813 or equivalent procedures.

Inspect coupling areas carefully. They often fail first.

A practical trial should run under real flow conditions.

A practical trial should run under real flow conditions. Monitor wall thickness, vibration, leakage, and temperature after operation. The World Steel Association reported approximately 1.89 billion tonnes of crude steel production in 2023, showing the scale of abrasive process duties. Yet production volume does not define your hose requirement.

I would still question a selection based only on ceramic thickness. Compatibility, installation geometry, and pressure surges may matter more.

Comparing Ceramic Materials, Rubber Compounds, and Hose Reinforcement

Choosing the right ceramic plated rubber hose starts with the conveyed material, not the catalog name. Alumina ceramic offers high hardness and abrasion resistance. The 2024 U.S. Geological Survey Mineral Commodity Summaries reported about 140 million metric tons of global alumina production in 2023. This scale supports stable material availability, but it does not guarantee equal liner quality. Ask for ceramic purity, tile thickness, bond strength, and measured wear data.

Rubber selection changes the hose’s chemical and temperature limits. Natural rubber handles repeated flexing well, while nitrile rubber suits many oil-based fluids. EPDM performs better with hot water, steam, and several weathering conditions. ISO 1817 immersion testing helps compare swelling, hardness change, and tensile loss. A compound may look excellent on paper. Field contamination can still expose weaknesses.

Reinforcement controls pressure, bending, and vacuum resistance. Textile plies provide flexibility, while steel wire improves pressure capability and crush resistance. ISO 3862 and SAE hose classifications offer useful testing frameworks, but neither replaces a site-specific pressure test. Check operating pressure, surge pressure, bend radius, temperature, and coupling retention together. One overlooked detail matters. The ceramic can survive abrasion while the rubber fails from heat. I would also question unusually high wear claims unless test duration, particle size, speed, and load are clearly reported. Real service rarely matches a perfect laboratory setup.

How to Choose the Right Ceramic Plated Rubber Hose? - Comparing Ceramic Materials, Rubber Compounds, and Hose Reinforcement

Material and Construction Comparison for Ceramic Plated Rubber Hoses
Selection Dimension Option Typical Technical Characteristics Advantages Limitations Best-Fit Applications Indicative Selection Rating
Ceramic Lining Material
Ceramic type Alumina Ceramic, 85–95% Al2O3 Typical density: approximately 3.3–3.7 g/cm³. Common hardness: approximately 1,200–1,600 HV. Continuous service temperature is commonly around 1,000°C for the ceramic itself. Good abrasion resistance, relatively economical, and widely available in tiles, sleeves, and segmented liners. Lower hardness and wear resistance than high-purity alumina or silicon carbide. Brittle under severe impact or poor installation support. Slurry, mineral fines, coal ash, sand, cement powder, and general bulk-material transfer. Abrasion: High
Impact: Medium
Cost: Medium
Ceramic type High-Purity Alumina, 96–99.5% Al2O3 Typical density: approximately 3.7–3.9 g/cm³. Hardness commonly exceeds 1,600 HV. Low porosity and high chemical stability. Higher wear resistance and lower porosity than medium-alumina grades; suitable for long-duty-cycle abrasive service. Usually more expensive and more sensitive to concentrated impact than lower-purity, tougher ceramic grades. Fine mineral powders, highly abrasive slurries, alumina handling, silica sand, and continuous conveying systems. Abrasion: Very High
Impact: Medium
Cost: High
Ceramic type Silicon Carbide, SiC Typical density: approximately 3.1–3.2 g/cm³. Mohs hardness is commonly around 9–9.5. High thermal conductivity and strong resistance to many corrosive environments. Excellent abrasion resistance, relatively low weight, and good thermal-shock performance compared with many oxide ceramics. More costly; brittle and not ideal where large, repeated impact or severe bending is expected. Highly abrasive slurries, cyclone discharge, mineral processing, chemical solids, and elevated-temperature particulate service. Abrasion: Very High
Impact: Medium-Low
Cost: High
Ceramic type Zirconia-Based Ceramic Typical density: approximately 5.6–6.1 g/cm³. Higher fracture toughness than conventional alumina, with good resistance to crack propagation. Better toughness and impact tolerance than standard alumina; useful where ceramic fracture is a primary concern. Higher material cost and weight; abrasion performance depends strongly on formulation and microstructure. Moderate-to-high impact service, abrasive solids with intermittent shock loading, and specialized conveying systems. Abrasion: High
Impact: High
Cost: Very High
Rubber Compound
Rubber compound Natural Rubber, NR Typical operating range is approximately −40°C to +80°C, depending on formulation. High elasticity and strong resistance to repeated flexing. Excellent resilience, flexibility, and resistance to cutting and tearing in many abrasive slurry services. Poor resistance to ozone, weathering, oils, and many hydrocarbons unless specially compounded. Wet abrasive slurry, sand, gravel, mineral concentrate, and applications requiring frequent hose movement. Flexibility: Very High
Abrasion: High
Oil Resistance: Low
Rubber compound Styrene-Butadiene Rubber, SBR Typical operating range is approximately −40°C to +90°C. Provides balanced abrasion, tensile, and cost performance. Good general-purpose abrasion resistance and commonly used in economical hose constructions. Moderate resistance to oils, fuels, ozone, and weathering; may not suit highly dynamic or chemically aggressive service. Dry powders, coal, cement, aggregate, and general-purpose abrasive material transfer. Flexibility: High
Abrasion: High
Oil Resistance: Low-Medium
Rubber compound Nitrile Rubber, NBR Typical operating range is approximately −30°C to +100°C, with some formulations rated higher. Good resistance to petroleum oils and fuels. Suitable for oily abrasive materials and environments where mineral oils or hydraulic fluids may contact the hose. Generally less resistant to ozone and outdoor weathering than EPDM; low-temperature flexibility depends on acrylonitrile content. Oil-contaminated slurry, petroleum-related solids, hydraulic environments, and industrial material handling. Flexibility: High
Abrasion: High
Oil Resistance: Very High
Rubber compound Ethylene Propylene Diene Rubber, EPDM Typical operating range is approximately −50°C to +150°C, depending on formulation. Strong resistance to ozone, weathering, hot water, and many dilute chemicals. Excellent outdoor durability and broad resistance to water-based chemicals and elevated temperatures. Unsuitable for most petroleum oils, fuels, and hydrocarbon-based fluids. Outdoor slurry lines, hot water service, dilute acids or alkalis, and weather-exposed installations. Weathering: Very High
Temperature: High
Oil Resistance: Low
Rubber compound Chloroprene Rubber, CR Typical operating range is approximately −35°C to +100°C. Balanced resistance to weathering, ozone, flame, and moderate oils. Good all-round environmental durability and better flame behavior than many general-purpose rubber compounds. Usually lower abrasion performance than optimized natural-rubber compounds and limited compatibility with some concentrated chemicals. Outdoor industrial transfer, moderate oil exposure, and applications requiring balanced environmental resistance. Weathering: High
Abrasion: Medium-High
Oil Resistance: Medium
Hose Reinforcement
Reinforcement type Textile Cord or Fabric Common fibers include polyester, nylon, and rayon. Provides flexibility with moderate pressure capability; performance depends on ply count and cord construction. Lightweight, flexible, and suitable for frequent handling or routing around bends. Lower resistance to crushing and surge pressure than wire-reinforced designs; pressure rating is highly construction-dependent. Low-to-medium pressure abrasive transfer, portable hoses, and systems requiring frequent movement. Flexibility: Very High
Pressure Capability: Medium
Weight: Low
Reinforcement type Spiral or Helical Steel Wire Steel wire improves resistance to vacuum, collapse, external compression, and pressure surges. Wire diameter and helix geometry determine flexibility. Good structural support for suction, discharge, and heavy-duty service; better resistance to kinking and crushing. Heavier than textile reinforcement and may reduce flexibility. Corrosion protection is important in wet or chemically aggressive environments. Slurry suction, dredging, aggregate handling, vacuum service, and heavy industrial installations. Collapse Resistance: Very High
Flexibility: Medium
Weight: High
Reinforcement type High-Tensile Steel Wire Plies Multiple braided or spiral steel-wire plies provide high working-pressure capability and resistance to pressure pulsation. Suitable for high-pressure discharge lines and systems exposed to hydraulic shock or pressure cycling. Higher minimum bend radius, greater weight, and increased risk of damage if the cover is breached and corrosion reaches the wires. High-pressure mineral slurry, abrasive discharge, industrial pumping, and fixed pipeline sections. Pressure Capability: Very High
Flexibility: Medium-Low
Weight: High
Reinforcement type Aramid Fiber High-strength, low-density fiber reinforcement with good fatigue resistance and low elongation compared with many textile fibers. Lower weight than steel at comparable tensile strength; useful when handling weight and corrosion are important. More expensive; vulnerable to certain chemical and ultraviolet exposures unless properly protected by the cover. Mobile high-pressure hoses, weight-sensitive installations, and systems requiring high tensile strength without steel reinforcement. Strength-to-Weight: Very High
Corrosion Resistance: High
Cost: High
Practical Selection Priorities
Primary operating condition Severe Sliding Abrasion Particles continuously rub against the hose wall, often at high velocity or concentration. Prioritize high-purity alumina or silicon carbide, combined with a thick, well-bonded rubber backing. Highly hard ceramics can fracture if the hose is subjected to concentrated impact, unsupported bending, or poor handling. Fine sand, mineral concentrate, fly ash, silica, and high-solids slurry. Recommended Priority: Lining Wear Resistance
Primary operating condition Large-Particle Impact Coarse solids strike the lining repeatedly, creating localized shock loads. Use a tougher ceramic geometry, resilient rubber support, and reinforcement that limits excessive deformation. Very hard but brittle ceramic tiles may chip or crack if impact energy is not distributed. Gravel, crushed stone, coarse ore, and aggregate transfer. Recommended Priority: Toughness and Support
Primary operating condition Oil or Hydrocarbon Exposure Oil, fuel, or hydrocarbon contamination can cause swelling, softening, or loss of adhesion in incompatible elastomers. Select NBR or a compatible specialty compound and verify chemical compatibility with the actual fluid. EPDM and many natural-rubber formulations are generally unsuitable for petroleum-based fluids. Oil-bearing slurry, fuel-contaminated solids, and hydraulic environments. Recommended Priority: Chemical Compatibility
Primary operating condition Vacuum or Suction Service External atmospheric pressure can collapse a hose if the wall lacks sufficient structural support. Specify helical steel wire or another anti-collapse construction, with an appropriate minimum bend radius. Textile-only reinforcement may not provide adequate collapse resistance for deep suction or blocked-inlet conditions. Dredging, slurry suction, vacuum conveying, and pump inlet lines. Recommended Priority: Collapse Resistance
Technical values are typical engineering ranges and can vary with formulation, ceramic purity, tile geometry, hose diameter, reinforcement design, operating pressure, temperature, particle size, and installation conditions. Final selection should be verified against the actual medium, pressure, vacuum, temperature, bend radius, and duty cycle.

Checking Wear Resistance, Flexibility, Temperature, and Pressure Ratings

How to Choose the Right Ceramic Plated Rubber Hose?

Checking Wear Resistance, Flexibility, Temperature, and Pressure Ratings

A ceramic plated rubber hose must match the material it carries. Sharp sand, crushed stone, and glass particles can quickly wear ordinary rubber. Check the ceramic hardness, tile thickness, and lining coverage. A thicker lining is not always better. Poorly bonded ceramic can crack under impact. In field inspections, I look for exposed rubber, loose tiles, and polished wear spots near bends.

Flexibility matters when the hose moves during loading or unloading. Measure the minimum bending radius, not just the hose length. A hose forced around a tight corner may develop hidden cracks. I once saw a short hose fail because its support bracket created a severe bend. The specification was correct, but the installation was not. This detail is easy to overlook.

Temperature and pressure ratings need practical margins. Compare the hose rating with the actual fluid temperature, pressure spikes, and cleaning conditions. Hot air, slurry, and steam can affect rubber differently. Confirm both working pressure and burst pressure. Also check whether pressure changes occur suddenly. A hose rated for steady pressure may perform poorly during surges. Record the operating temperature at the hose wall, not only the equipment display. Recheck these measurements after installation, because real conditions can differ from the original design.

How to Choose the Right Ceramic Plated Rubber Hose?

Compare wear resistance, flexibility, temperature capability, and pressure capacity before selecting a hose for abrasive material transfer.

The scores are indicative engineering benchmarks on a 0–100 scale. Heavy-duty ceramic-lined construction generally provides the highest abrasion and pressure performance, while lighter constructions offer better flexibility. Actual ratings depend on ceramic thickness, rubber compound, hose diameter, temperature, conveyed material, and installation conditions.

Selecting the Right Supplier, Specifications, Installation, and Maintenance Plan

Choosing the right ceramic plated rubber hose starts with the supplier, not the catalog price. Ask for documented material data, production traceability, and pressure test records. A reliable supplier should explain the ceramic composition, rubber grade, bonding method, and temperature limits clearly. If answers sound vague, pause the purchase.

Match the hose to the actual service conditions. Confirm working pressure, surge pressure, internal diameter, bend radius, temperature, and abrasive particle size. Slurry density also matters. A hose carrying sharp mineral particles may require thicker ceramic coverage than one handling fine powder. Request a sample or inspection report when the application is severe. A small mistake here can become an expensive shutdown.

Installation needs equal attention. Keep the hose supported without crushing it, and avoid twisting near the flanges. Check gasket alignment and tighten bolts in a cross pattern. Allow enough space for movement during pressure changes. I have seen hoses fail early because installers forced a tight bend behind a pump. That detail is easy to miss.

Build a maintenance plan around real operating hours. Inspect the outer cover for bulges, cuts, exposed reinforcement, or unusual stiffness. Record pressure, temperature, vibration, and leakage during routine checks. Remove the hose from service if ceramic fragments appear downstream. Do not rely only on visual inspection; hidden wear can progress beneath an intact cover. Some inspection intervals may need adjustment after the first month, because actual wear rarely matches the original estimate.
